What is a Bottom Gusset Pouch?
A bottom gusset pouch is a type of flexible packaging bag designed with a folded gusset at the bottom. When the pouch is filled with product, the bottom gusset expands outward, allowing the bag to increase its internal volume while improving stability and load-bearing capacity.
This structure makes bottom gusset pouches a popular choice for both food packaging and non-food packaging applications.
Key Features of Bottom Gusset Pouches
1. Structural Design
Before filling, the bottom of the pouch remains folded flat, known as the gusset.
After filling, the gusset opens to form a wider base, giving the pouch a more three-dimensional shape and increased capacity.
Common structures include:
* Standard bottom gusset pouch
* K-seal bottom gusset pouch (enhanced strength and sealing performance)
2. Functional Advantages
* Increased internal volume without increasing bag height
* Improved standing stability on shelves (depending on gusset structure)
* Enhanced load-bearing strength, especially for heavy or bulky products
* Efficient use of packaging material while maintaining durability
3. Applications
Bottom gusset pouches are widely used in various industries, including:
* Snack packaging
* Coffee packaging
* Pet food packaging
* Grain and cereal packaging
* Freeze-dried food packaging
* Powder packaging
* Liquid packaging
They are suitable for products requiring high strength, good shelf presentation, and efficient storage.
What types of Bottom Gusset Pouches are there?

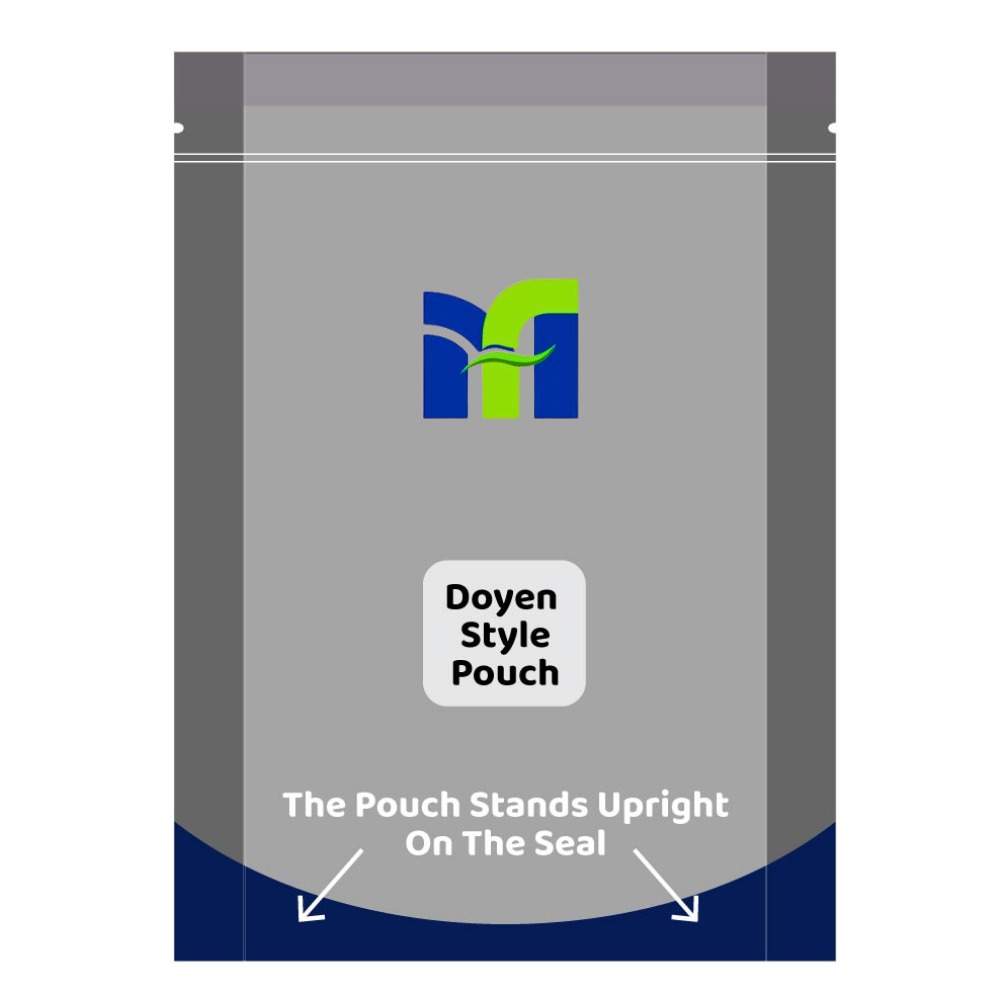

1. Doypack (Stand-Up Pouch with Rounded Bottom)
The Doypack is the most common type of stand-up pouch.
It features a rounded or oval-shaped bottom gusset, allowing the pouch to stand upright once filled.
Key Features:
* Attractive appearance
* Excellent shelf display performance
* Flexible and versatile structure
Typical Applications:
* Snack packaging
* Pet food packaging
* Coffee packaging
* Powder packaging
* Liquid packaging

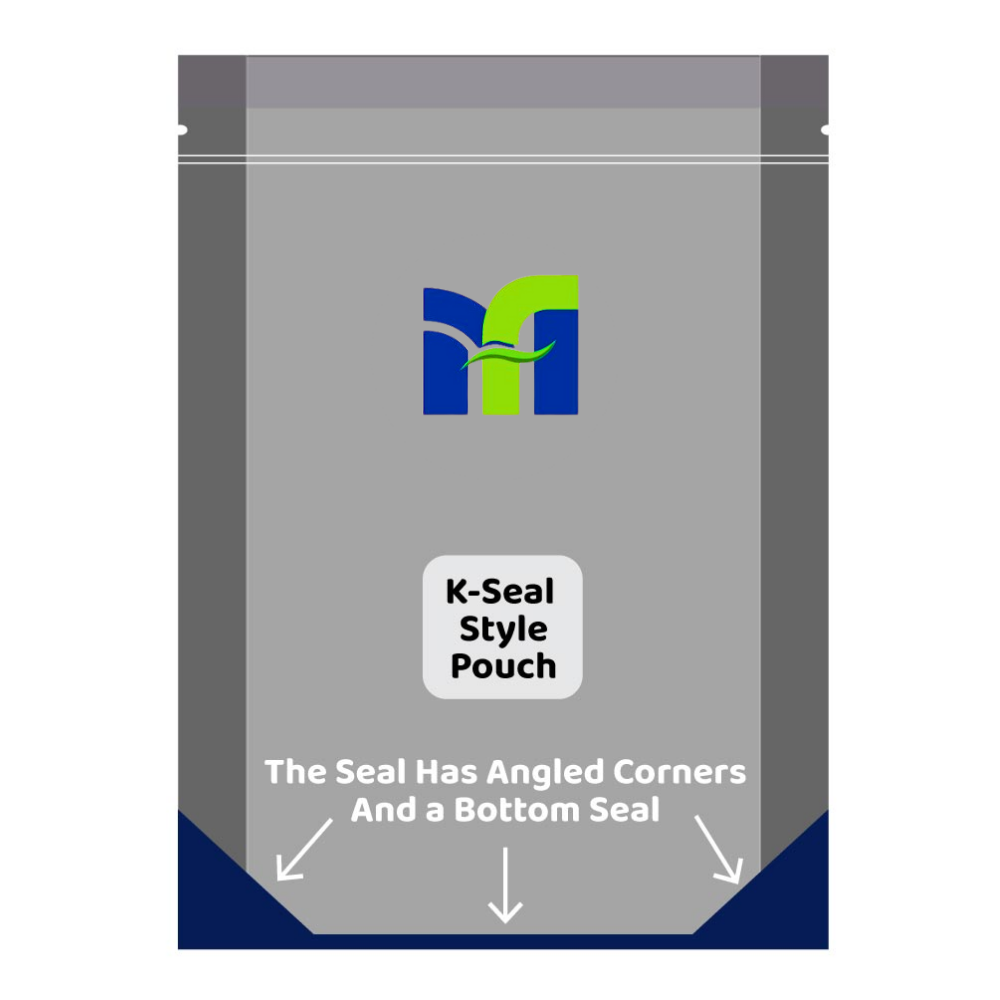

2. K-Seal Bottom Gusset Pouch
The K-seal bottom gusset pouch has a distinctive K-shaped seal at the bottom corners, which distributes weight more evenly and significantly improves load-bearing strength.
Key Features:
* Strong bottom seal
* Better stress distribution
* Suitable for heavier or sharp-edged products
Typical Applications:
* Pet food packaging
* Large-volume snacks
* Grain and cereal packaging
* Freeze-dried food packaging
* Powder packaging

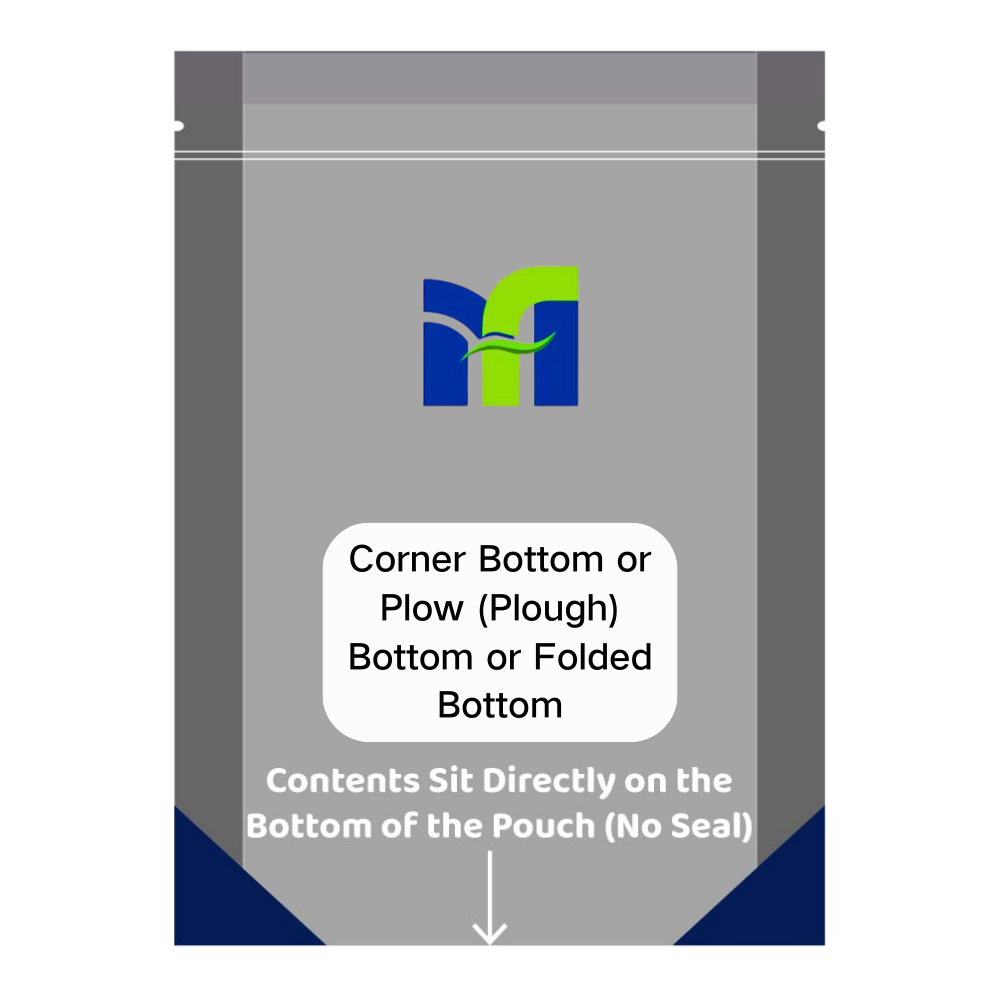

3. Plow Bottom Gusset Pouch / Folded Bottom Gusset Pouch
Also known as a plow bottom pouch or folded bottom gusset pouch, this structure uses machine-folded flat bottoms, offering high space efficiency and lower production cost.
Key Features:
* Flat bottom formed by mechanical folding
* Cost-effective for large volumes
* High packing efficiency
Typical Applications:
* Large-capacity packaging (5 kg, 10 kg, etc.)
* Pet food packaging
* Bulk food packaging

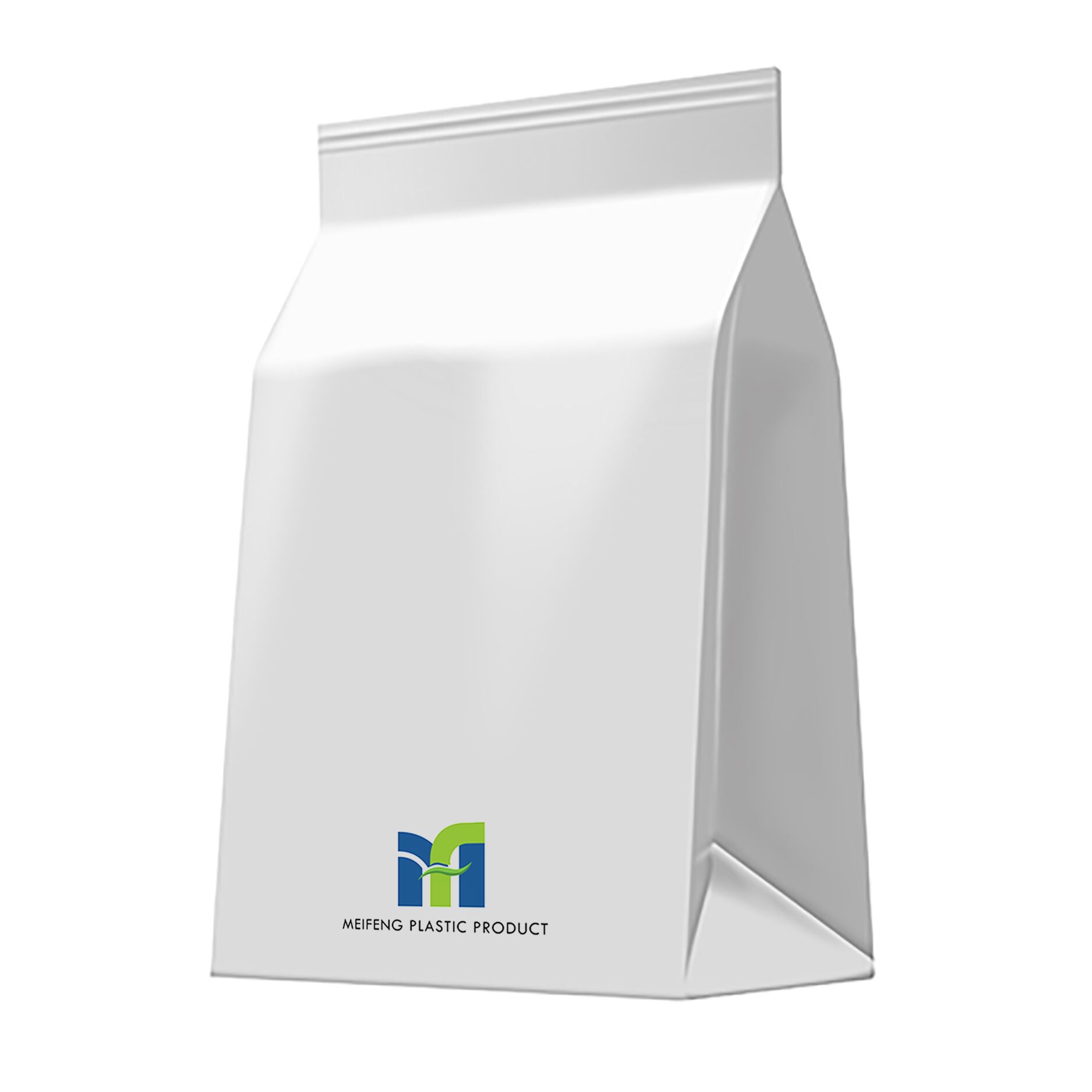

4. Flat Bottom Pouch (Box Pouch)
Strictly speaking, the flat bottom pouch is an advanced variation of bottom gusset structures.
It features a completely flat base, allowing the pouch to stand upright like a box, offering maximum stability and premium shelf presence.
Key Features:
* Excellent standing stability
* Premium, box-like appearance
* Suitable for high-end branding
Typical Applications:
* Premium pet food packaging
* Coffee packaging
* High-end snack packaging
Bottom Gusset Pouch Types – Comparison Table
| Type | Bottom Structure | Stability | Load Capacity | Cost Level | Typical Applications |
|---|---|---|---|---|---|
| Doypack (Stand-Up Pouch) | Rounded / oval bottom gusset | Medium–High | High | Medium | Snacks, pet food, coffee, powders, liquids |
| K-Seal Bottom Gusset Pouch | K-shaped corner seals | High | High | Medium–High | Pet food, grains, freeze-dried food, powders |
| Plow Bottom / Folded Bottom Gusset Pouch | Machine-folded flat bottom | Medium | Medium–High | Low | Large-capacity packaging, pet food, bulk food |
| Flat Bottom Pouch (Box Pouch) | Fully flat, box-shaped bottom | Very High | Medium | High | Premium pet food, coffee, high-end snacks |
Quick Selection Guide
* Best shelf display: Flat Bottom Pouch
* Best load-bearing strength: K-Seal Bottom Gusset Pouch
* Best cost efficiency for large volume: Plow Bottom Gusset Pouch
* Most versatile & widely used: Doypack
How to Measure a Bottom Gusset Pouch
1. Width (W)
- Lay the empty pouch flat on a table without stretching.
- Measure the total width from left edge to right edge.
Example:
W = 150 mm
2. Height (H)
- Measure from the bottom edge to the top seal.
- Do not include tear notches or excess film above the zipper.
- If the pouch has a zipper, height is measured including the zipper.
Example:
H = 200 mm

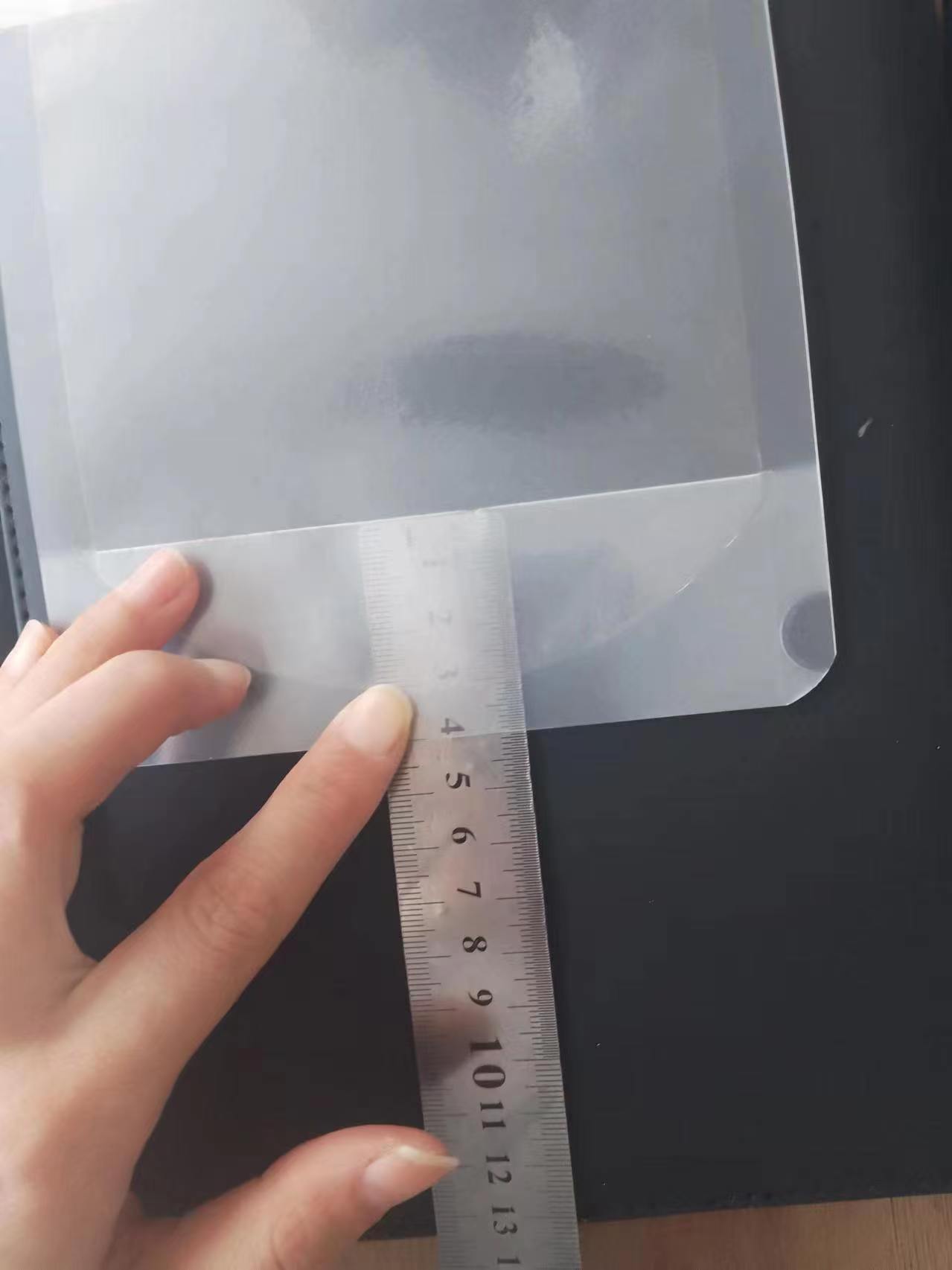

3. Bottom Gusset (G)
The bottom gusset is the folded section at the bottom of the pouch.
Standard Industry Method:
- Keep the pouch flat.
- Measure the gusset from fold line to fold line.
Example:
G = 40 mm
Industry standard: G is measured in the folded state.
Reference Method:
- When fully opened, the bottom width equals 2 × G.
(e.g. 80 mm expanded bottom = G 40 mm)
4. Standard Size Format
Flexible packaging dimensions are written as:
W × H + G
Example:
150 × 200 + 40 mm (Including zipper, if applicable)
5. Measurement Notes
* Do not stretch the pouch during measurement.
* Avoid heat-sealed edges when measuring.
* For quotations and production, always use design drawing dimensions.
* For K-seal bottom gusset pouches, gusset size is still quoted using the standard G measurement.
How to Order Bottom Gusset Pouches
Step 1. Choose Pouch Type
Select the bottom gusset structure you need:
* Doypack (stand-up pouch)
* K-seal bottom gusset pouch
* Plow bottom (folded bottom)
* Flat bottom pouch
Step 2. Confirm Size & Features
Provide pouch dimensions in the standard format:
W × H + G (Width × Height + Bottom Gusset)
Example: 150 × 200 + 40 mm
Please specify optional features if required:
* Zipper
* Tear notch
* Degassing valve
Step 3. Select Material Structure
Choose the material based on product type and storage conditions such as:
* PET / PE
* PET / AL / PE
* NY / PE
* High-barrier transparent films
Please confirm:
* Barrier requirements
* Frozen or ambient storage
Step 4. Send Artwork
Provide editable artwork files (AI / PDF):
* CMYK color mode
* Notes for matte, glossy, window, or special effects
Step 5 — Quotation, Sampling & Confirmation
Pricing is calculated based on:
* Material structure * Pouch size
* Number of colors in the artwork
* Order quantity
Sampling options:
* Stock samples – free of charge
* Custom printed samples based on your artwork – available at an additional cost
Production will begin after PI confirmation and deposit payment.
Step 6. Production & Delivery
Production lead time: 15–25 days.
Available trade terms: * EXW / FOB / CIF / DDP
We provide packing list, invoice, and shipping documents. After delivery, our team offers full after-sales support.
